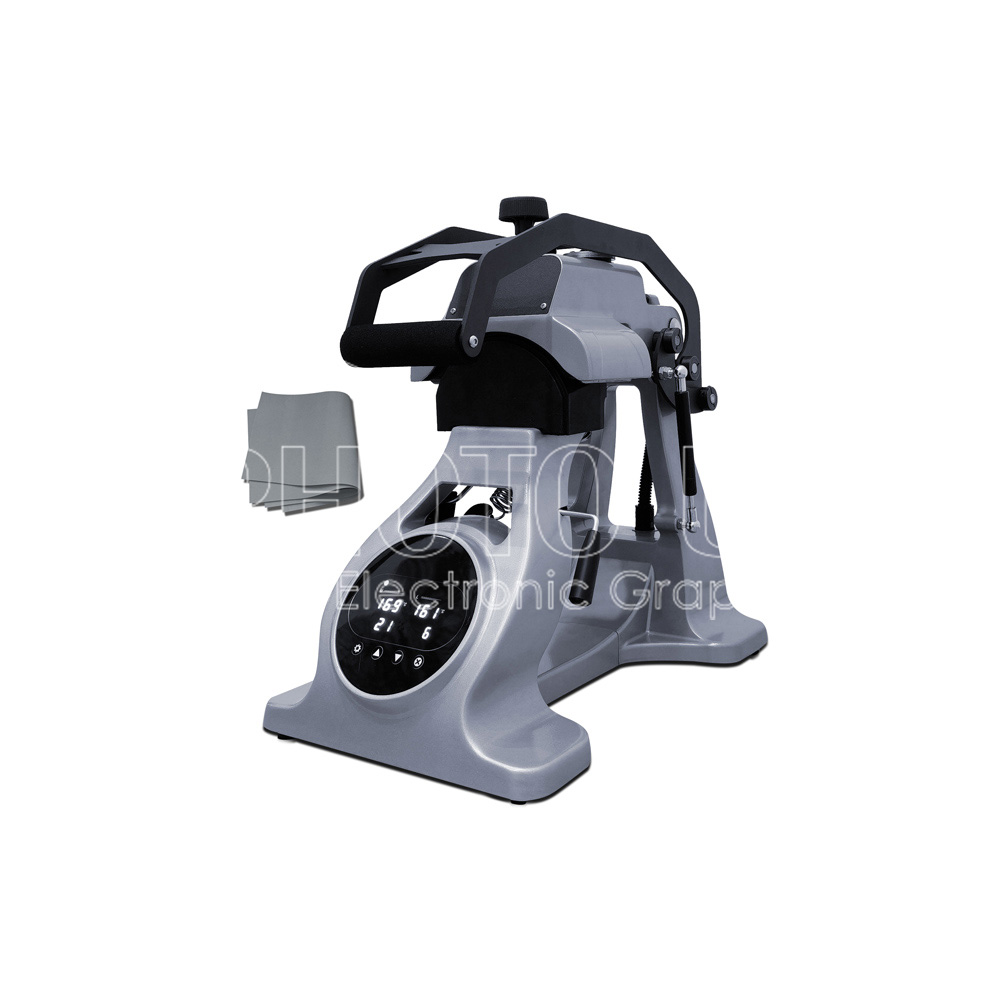

This state-of-the-art double heating platens cap heat press machine is engineered for professional and efficient cap printing work. It has independently controlled upper and lower heating platens that make it not only capable of printing the common plane figures but also capable of fixing 3D graphics like logo patches and emblems on the cap. Moreover, this heat press also has a modern, advanced multi-timer digital controller, safe and convenient auto-open function, as well as a wide opening angle that offers a larger heat-free workspace. Such many advanced features and technologies make this machine the most professional cap heat press, and thus, it will make any cap printing project that comes to you a breeze!
DOUBLE HEATING PLATENS
This cap heat press has independently controlled upper and lower heating platens, so it can heat both from above and below at different temperatures. The double heating platens design can not only print the ordinary plane figures, but it can also effectively fix 3D graphics like logo patches and emblems on the cap.
WIDE APPLICATIONS
The one-size-fits-all hat pad allows you to print different sizes of caps. Moreover, you can not only print the front side of the cap but can also print the sides and back on the hat pad.
WIDE OPENING ANGLE
This double heating platens cap heat press machine can open up to 80°. The wide opening angle offers you a much safer heat-free workspace.
ADVANCED LCD TOUCH CONTROLLER
The modern, advanced LCD touch controller provides accurate temperature & time control. And it has multiple timers that allow you to pre-set all the times at once for the three steps of completing a project, i.e., pre-heating, printing and reinforcing. The multi-timer design will effectively streamline your workflow, largely improving your work efficiency.
AUTO-OPEN FUNCTION
The user-friendly auto-open function can prevent over-exposure and scorching of your cap. And it allows you to focus on other things of your project while the item is being pressed.
Specification
- Material: steel and aluminum
- Color: customizable
- Dimensions: 48.8 x 30.8 x 49.7 cm (19.2″ x 12.1″ x 19.6″)
- Platen Dimensions: 9.5 x 18 cm (3.7″ x 7.1″)
- Voltage: 110 V/220 V
- Power: 600W
- Controller: LCD Controller
- Max. Temperature: 232 °C/450 °F
- Temp. Accuracy: ±4 °F/2 °C
- Max. Pressing Force: 250 kg
- Acceptable Thickness: ≤1cm
- Stand-By Time: Max. 120 mins
- Certificate CE,UKCA
- Packaging: 61 x 59 x 43 cm (24.0″ x 23.2″ x 16.9″)
- G.W.: 23 kg (50.6 lbs)
- Qty/Cs: 1 pcs
