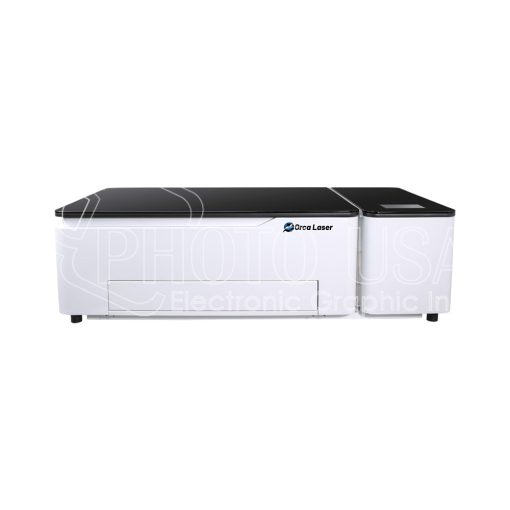

Photo USA’s Orca Laser L5030 Laser Engraving and Cutting Machine has been engineered in the most advanced technologies to achieve excellence in laser engraving and cutting. It can produce 55W CO2 laser with 10640nm wavelength that’s able to cut up to 20mm (acrylic) thick material. And it has very high laser beam positioning accuracy of 0.025mm and a max working speed of 600mm/s. Besides these extraordinary working performance, this machine also features an integrated triple waste gas filtration system, as well as a powerful multi-platform design & operating system covering PC, mobile phone and the machine. In addition, this laser engraving & cutting machine also has all-round safety design certified by CE, SGS and FDA to ensure the safest operation of the machine.
HIGH SPEED & PRECISE WORKING
Our Orca Laser L5030 Laser Engraving and Cutting Machine can produce 55W CO2 laser with 10640nm wavelength that’s able to cut up to 20mm (acrylic) thick material. Also, it has very high laser beam positioning accuracy of 0.025mm and a max working speed of 600mm/s. The extraordinary working performance ensures fast and accurate engraving and cutting of the item.
ROBUST & EFFICIENT LASER HEAD
The robust laser head is able to work fully enclosed or semi-open for consistent stable operation and extended service life. It combines auto focus and manual focus function and also has a max 30mm lifting stroke, which ensures precise & efficient engraving and cutting.
4K 16MP ULTRA-HD CCD CAMERA
This laser engraver and cutter is equipped with a panoramic 4K 16MP ultra-HD CCD camera that is perfect for image extraction and multiple fixed positions carving. The powerful ultra-HD camera largely increases engraving and cutting accuracy, ensuring better working results.
INTEGRATED TRIPLE WASTE GAS FILTRATION SYSTEM
Our Orca Laser L5030 Laser Engraving and Cutting Machine is built with an integrated triple waste gas filtration system. It combines an industrial-grade activated carbon board, a silent fan and activated carbon bricks into a whole to achieve highly efficient gas filtration.
POWERFUL MULTI-PLATFORM DESIGN & OPERATING SYSTEM
The machine is engineered with a powerful multi-platform design & operating system that includes the 5-inch LCD touch screen on the machine, mobile phone APP and PC software. With the powerful and comprehensive operating system, you can design your work and operate the machine at different platforms in maximum convenience.
ALL-ROUND SAFETY DESIGNS
In addition to those excellent functions and features, our Orca Laser L5030 Laser Engraving and Cutting Machine also has all-round safety designs, including fully enclosed body, drawer and top cover’s open-to-stop safety design, emergency safety button, safety key, as well as working status indicating light. All the safety designs have been certified by CE, SGS or FDA to ensure completely safe operation of the machine.
Specification
- Material: carbon steel (outer shell), aluminum and carbon steel (inner structure), and acrylic (top cover)
- Color: black-white
- Laser Type: sealed CO2 glass laser tube
- Laser Power: 55W
- Laser Beam Positioning Accuracy: ≤0.025 mm
- Working Area: 500 x 300 mm
- Maximum Working Speed: 600 mm/s
- Lifting Stroke of Laser Head: ≤30 mm
- Maximum Cutting Thickness: 20 mm (acrylic)
- Acceptable Material Thickness: ≤22 mm
- Camera: 4K 16MP ultra-HD CCD camera
- Focus Method: auto focus, manual focus
- Control System: 5 inch LCD touch screen, mobile phone APP, PC software
- Power Supply: 220 V/110 V AC 50 Hz/60 Hz
- Machine Size: 108 x 58.5 x 32 cm
- Net Weight: 70 kg
