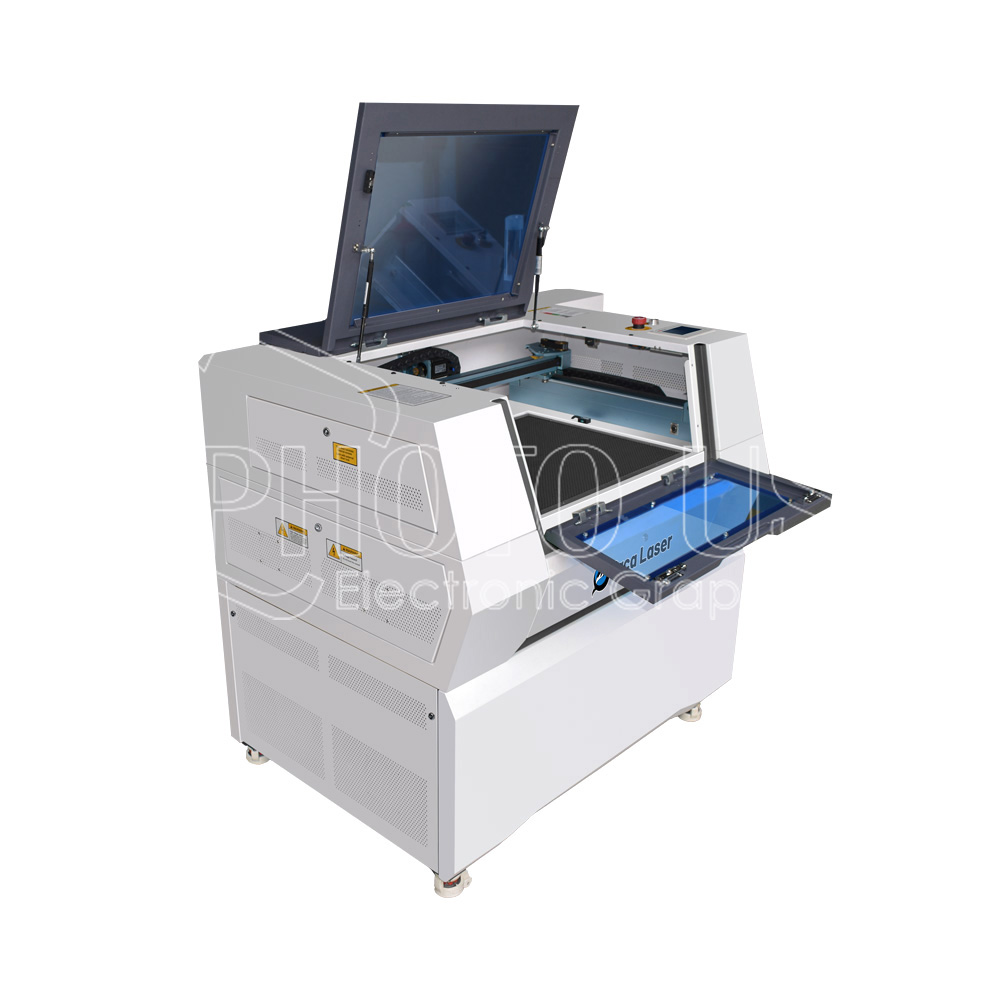

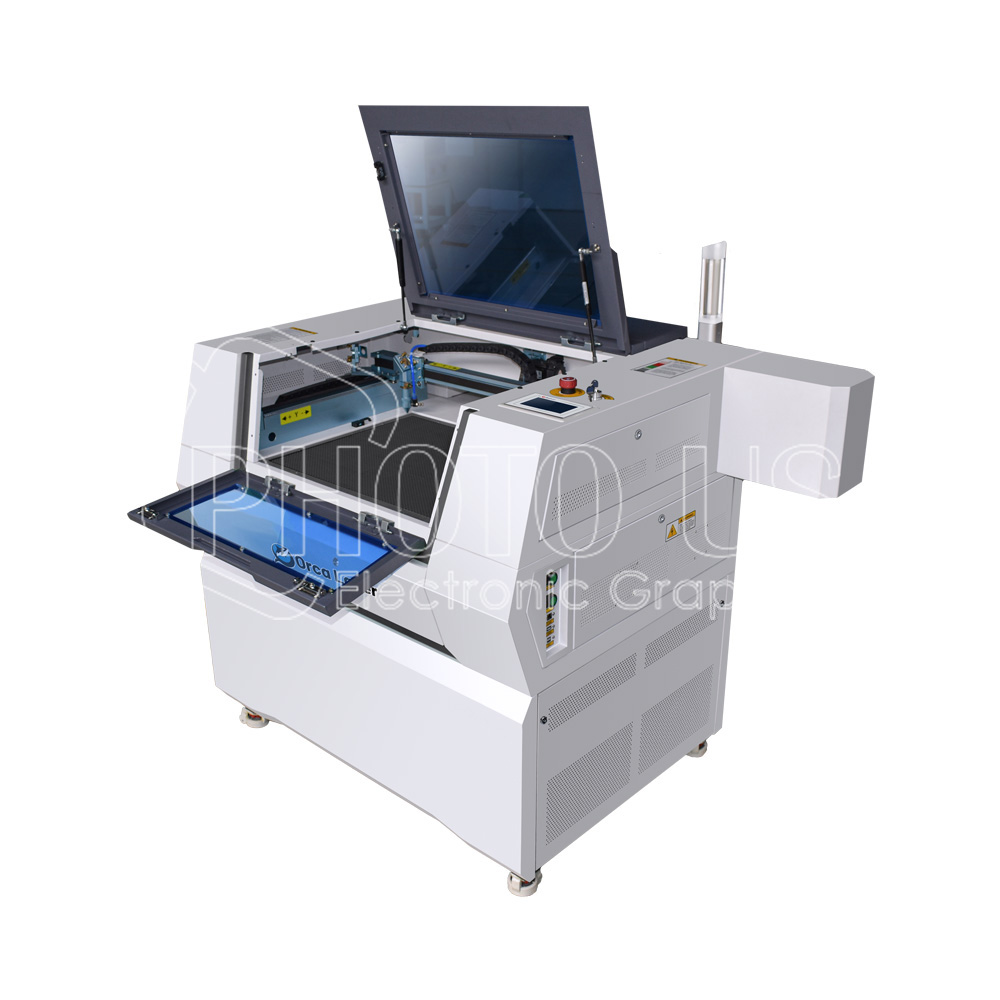

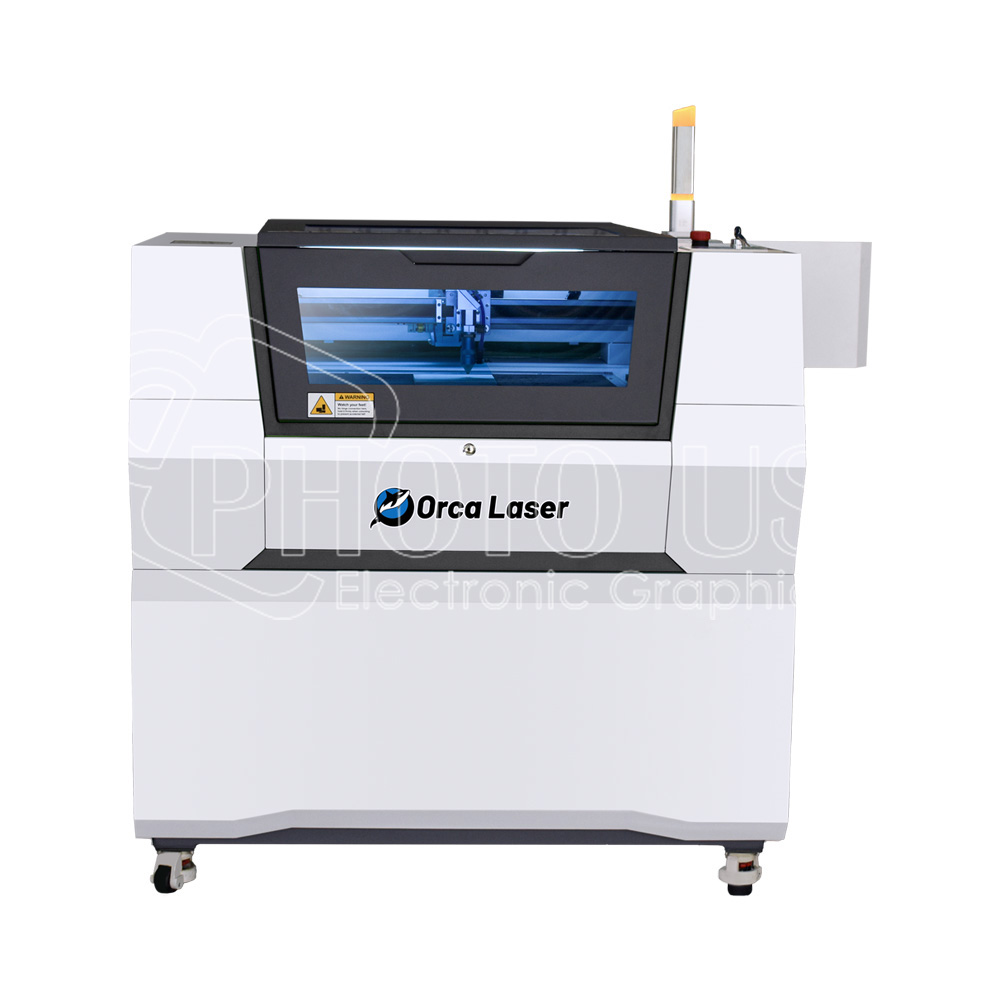

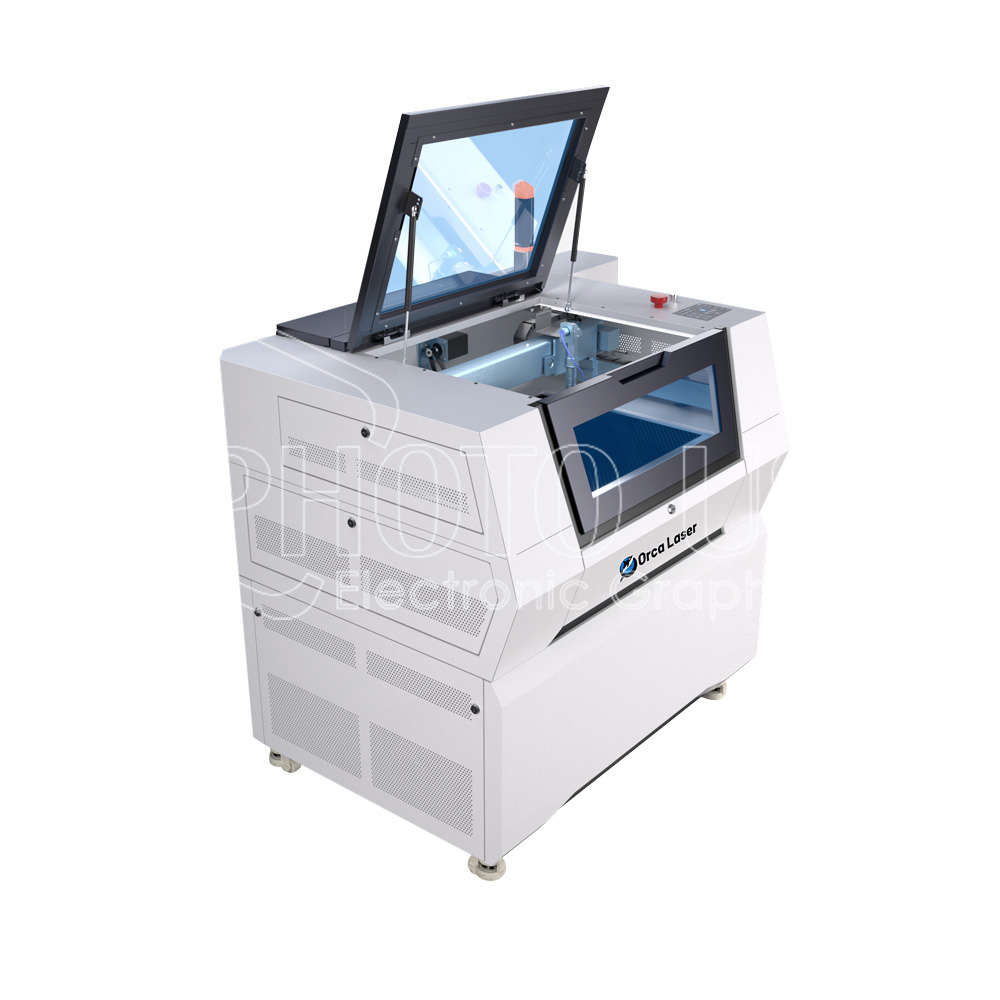

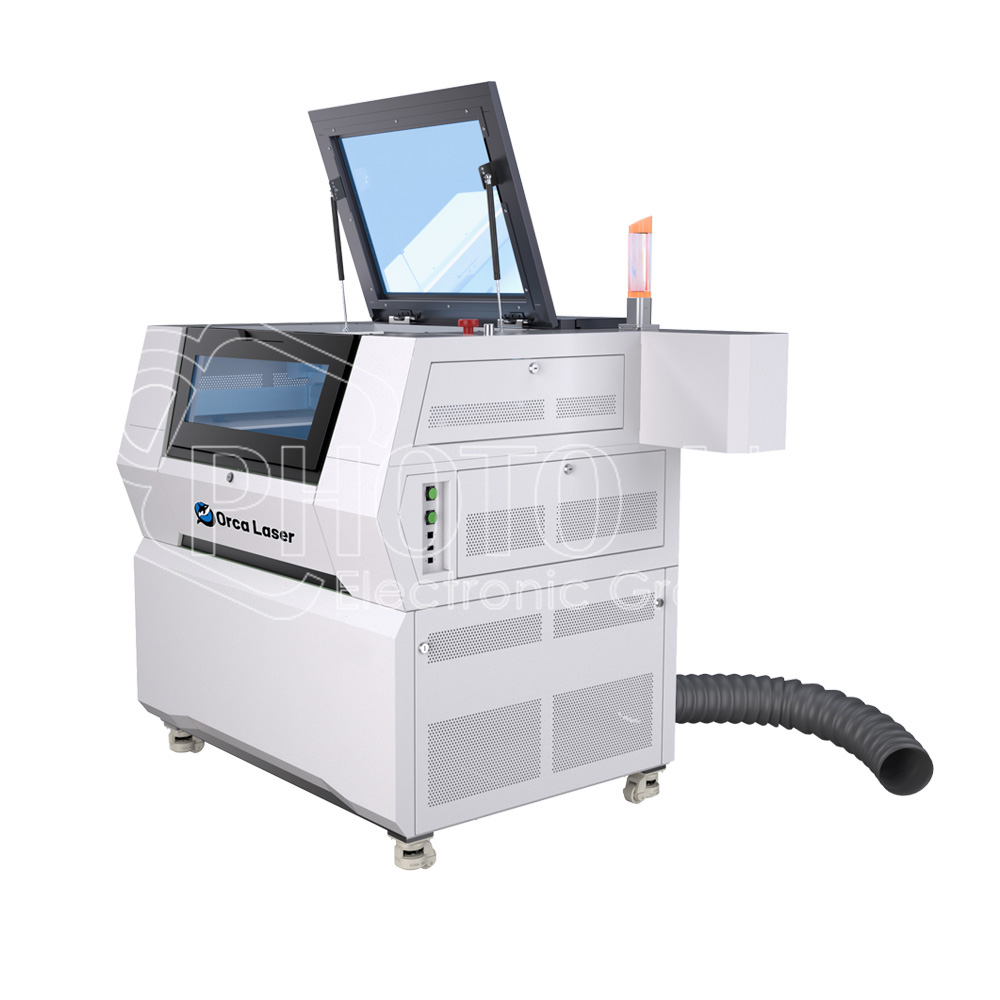

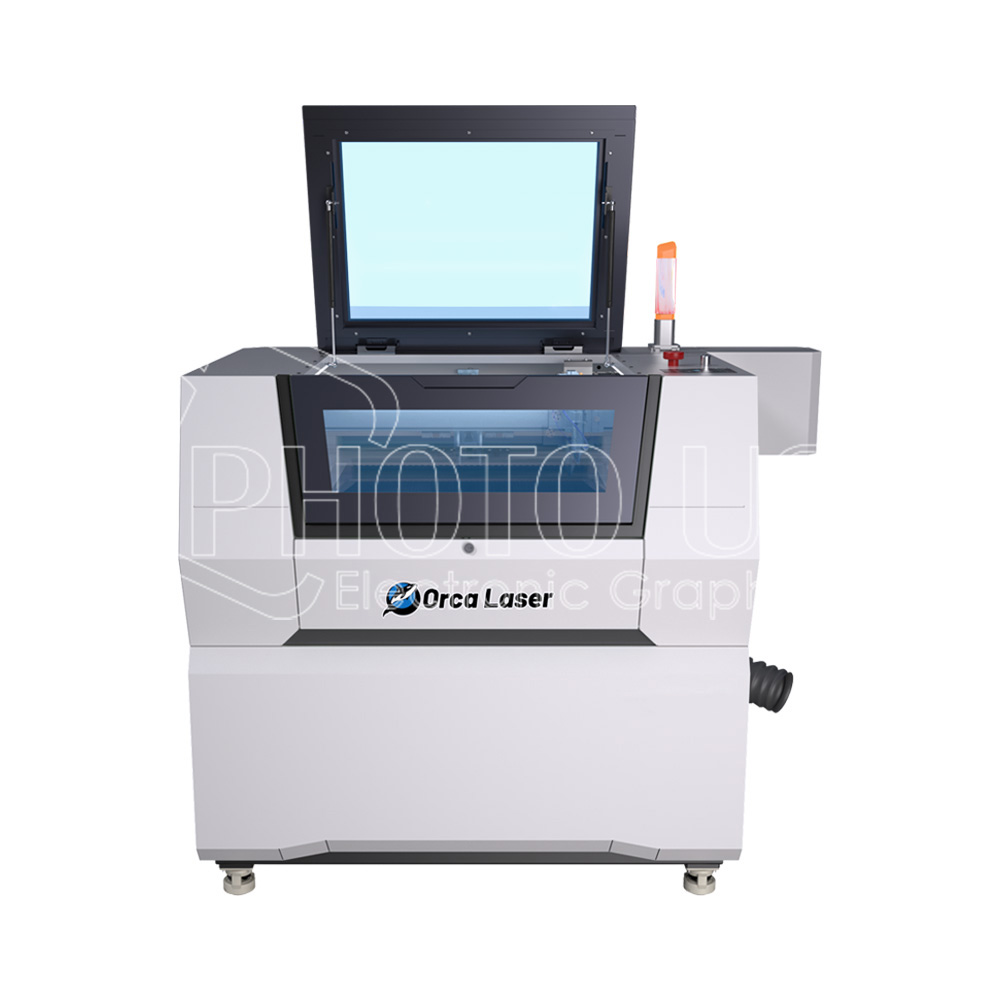

Photo USA’s Orca Laser L6040 Laser Engraving and Cutting Machine has been engineered in the most advanced technologies to deliver the most precise & fastest laser engraving and cutting, as well as unlimited possibilities of creation. It can produce 80W CO2 laser that’s able to cut up to 20mm (acrylic) thick material. And it has very high laser positioning accuracy of 0.01mm and a max working speed of 1000mm/s. Besides those extraordinary working performance, this machine also features openable front and rear doors of the cabin that allow you to put your item completely through the machine. The excellent penetrable working space design makes it possible for you to work on unlimited length of material.
HIGH SPEED & PRECISE WORKING
Our Orca Laser L6040 Laser Engraving and Cutting Machine can produce 80W CO2 laser that’s able to cut up to 20mm (acrylic) thick material. Also, it has very high laser positioning accuracy of 0.01mm realized by red dot positioning, as well as a max working speed of 1000mm/s. Those extraordinary working performance ensures very fast and accurate engraving and cutting of the item.
LIFTABLE WORKING PLATFORM
The laser engraver and cutter is designed with a liftable working platform that has a lifting height of 155mm. The liftable working platform allows you to put on a wide range of thickness of materials, providing a lot more possibilities to your engraving business.
OPENABLE FRONT & REAR DOORS

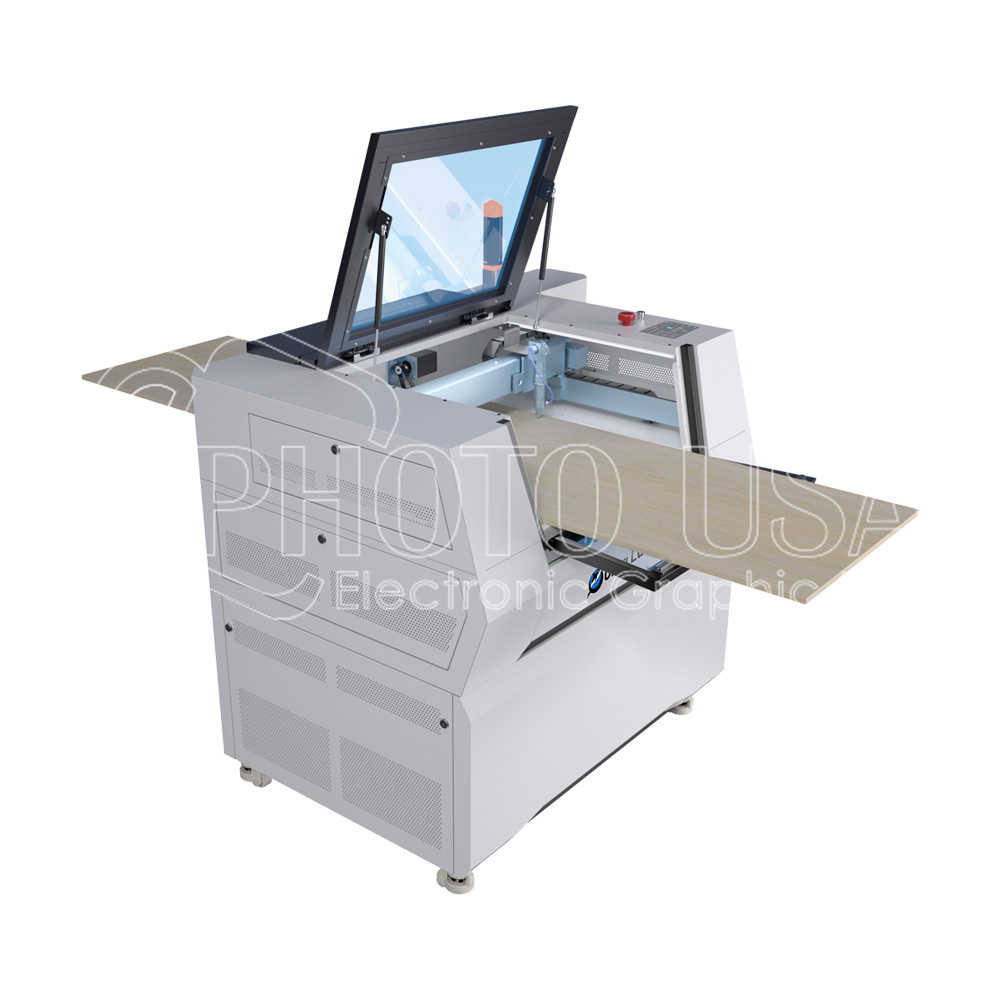

This Orca Laser L6040 Laser Engraving and Cutting Machine also features a pair of openable front and rear doors of the cabin. The penetrable working space design allows you to put your item completely through the machine, making it possible for you to work on unlimited length of material.
POWERFUL MULTI-PLATFORM DESIGN & OPERATING SYSTEM
The machine is engineered with a powerful multi-platform design & operating system that involves the 5-inch LCD touch screen on the machine, mobile phone APP and PC software. With the powerful and comprehensive operating system, you can design your work and operate the machine at different platforms in maximum convenience.
ALL-ROUND SAFETY DESIGNS
In addition to those excellent features and functions, our Orca Laser L6040 Laser Engraving and Cutting Machine also has all-round safety designs, including fully enclosed working space, top cover’s open-to-stop safety design, temperature sensing automatic alarm system, as well as emergency switch. All the safety designs have been certified by CE or FDA to ensure completely safe operation of the machine.
Specification
- Material: carbon steel (outer shell), aluminum and carbon steel (inner structure), and acrylic (top cover and front door)
- Color: black-white
- Laser Type: sealed CO2 glass laser tube
- Laser Power: 80W
- Laser Beam Positioning Accuracy: 0.01 mm
- Working Area: 600 x 400 mm
- Maximum Working Speed: 1000 mm/s
- Maximum Cutting Thickness: 20 mm (acrylic)
- Lifting Hight of Working Platform: 155 mm
- Focus Method: auto focus, manual focus
- Control System: 5 inch LCD touch screen, mobile phone APP, PC software
- Power Supply: 220 V
- Machine Size: 107 x 81.5 x 66 cm
- Net Weight: 300 kg
